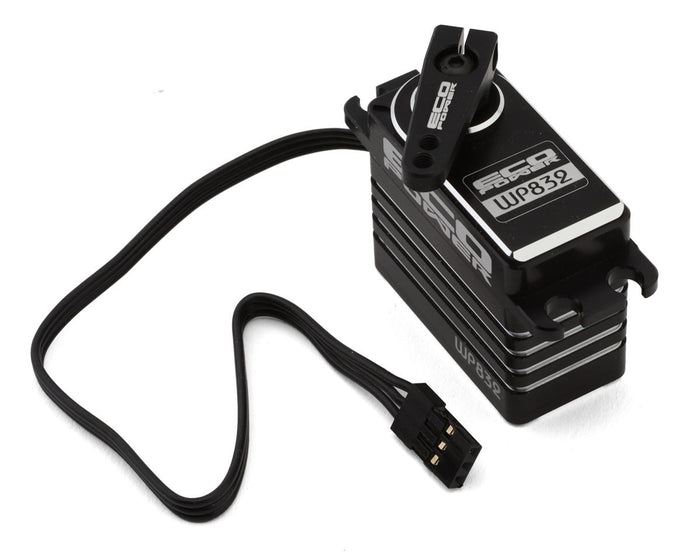

EcoPower WP-832 Mid Profile High Torque Brushless Servo
The EcoPower 832 Mid Profile Servo brings together cutting-edge brushless technology and unmatched performance, delivering the holding power, speed, and precision that rival coreless servos. With the added advantages of brushless motors—greater efficiency and extended lifespan—this servo is the perfect choice for builds demanding top-tier reliability and accuracy. Housed in a sleek aluminum case, the servo's design is both rugged and functional. Includes an aluminum single-arm clamping servo horn and a complete set of mounting washers for secure, long-lasting installation. Backed by a Lifetime Gear Warranty through Amain Hobbies.
Size
Engineered to handle the rigorous demands of various bashing chassis, the 832MP is a versatile option for extreme off-road and heavy-duty applications. Its mid-profile design ensures compatibility with a wide range of chassis, providing easy fitment without sacrificing power or performance.
Power & Gears
Equipped with a high-performance brushless motor and durable steel gears for maximum efficiency and longevity. The brushless motor provides smoother operation and higher torque, with less heat generation and longer lifespan compared to traditional motors. Steel gears resist wear and maintain precise performance even under high-stress demands.
Application
An excellent choice for 1/10 and 1/8 bashers and rock crawlers designed to withstand intense off-road action. Delivers superior control and responsiveness for chassis that require both toughness and reliability across a variety of demanding terrains.
Features
- Lifetime Gear Warranty backed by Amain Hobbies
- Ideal for bashing and crawling platforms
- Brushless motor
- Waterproof
- High voltage circuitry
- Full steel gears
- Full aluminum black case
In the Box

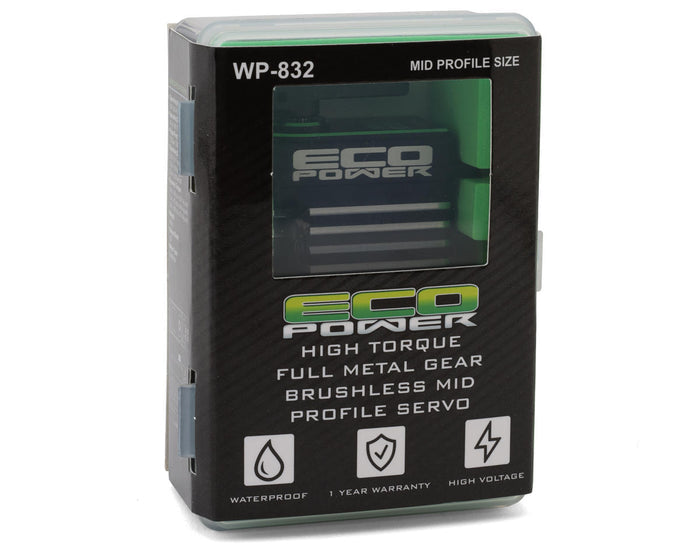

- (1) 832 Mid Profile High Speed Brushless Servo
- (1) Aluminum clamping servo horn
- Servo hardware and grommets
- (1) Lifetime Gear Warranty
Specifications
| Application | 1:10 Scale |
| Operating Voltage | 6.0V – 8.4V |
| Operating Temperature | 14° to 140°F (-10 to +60°C) |
| Operating Speed @ 7.4V | 0.09/60° sec |
| Operating Speed @ 8.4V | 0.08/60° sec |
| Dynamic Torque @ 7.4V | 832 oz-in (59.9 kg-cm) |
| Dynamic Torque @ 8.4V | 883 oz-in (63.5 kg-cm) |
| Motor Type | Brushless Digital |
| Output Shaft | 25T |
| Gears | Steel w/ Lifetime Gear Warranty |
| Weight | 63g |
| Pulse/Frequency | 1520µs / 333Hz |
| Dimensions | 39.6 x 20 x 40mm |
| Length (Bottom to Mount) | 24.5mm |
